More models and type are available:
Model | Nominal Voltage
(V) | Dimensions
(mm) | Discharge Characteristics (23°C) | Cut-off
Voltage
(V) | Approx. Weight
(g) | Operating
Temperature
(°C) |
CT | IEC | Nominal
Capacity
(mAh) | Standard
Current
(mA) | Max Discharge Current |
Continuous (mA) | Pulse
(mA) |
ER10280 |
| 3.6 | 10.0×28.0 | 450 | 0.5 | 10.0 | 20.0 | 2.0 | 5.0 | -55 ~ +85 |
ER10450 | AAA | 3.6 | 10.0×45.0 | 700 | 1.0 | 10.0 | 20.0 | 2.0 | 9.0 | -55 ~ +85 |
ER13150 |
| 3.6 | 13.0×15.0 | 450 | 0.5 | 10.0 | 20.0 | 2.0 | 5.5 | -55 ~ +85 |
ER14250 | 1/2AA | 3.6 | 14.5×25.0 | 1200 | 0.5 | 50.0 | 100.0 | 2.0 | 10.0 | -55 ~ +85 |

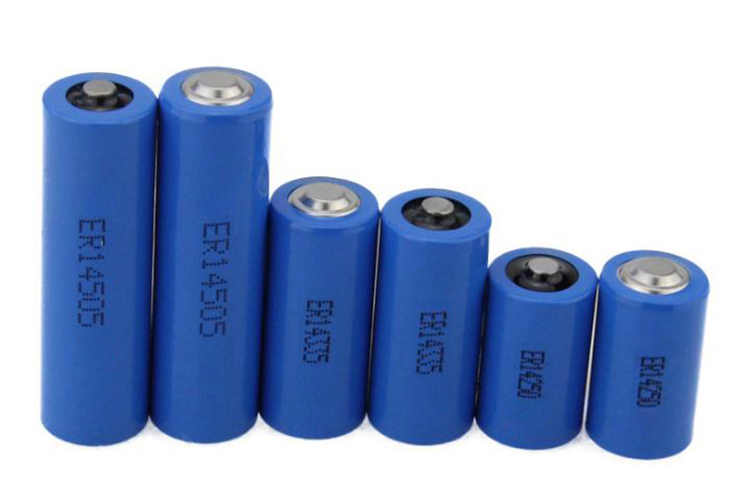

ER14335 | 2/3AA | 3.6 | 14.5×33.5 | 1600 | 0.7 | 50.0 | 100.0 | 2.0 | 13.0 | -55 ~ +85 |
ER14505 | AA | 3.6 | 14.5×50.5 | 2400 | 1.0 | 100.0 | 200.0 | 2.0 | 19.0 | -55 ~ +85 |
ER18505 | A | 3.6 | 18.5×50.5 | 3500 | 1.0 | 100.0 | 200.0 | 2.0 | 32.0 | -55 ~ +85 |
ER26500 | C | 3.6 | 26.2×50.5 | 9000 | 2.0 | 200.0 | 400.0 | 2.0 | 55.0 | -55 ~ +85 |
ER34615 | D | 3.6 | 34.2×61.5 | 19000 | 3.0 | 200.0 | 400.0 | 2.0 | 107.0 | -55 ~ +85
|
